| Specification | Description |
|---|---|

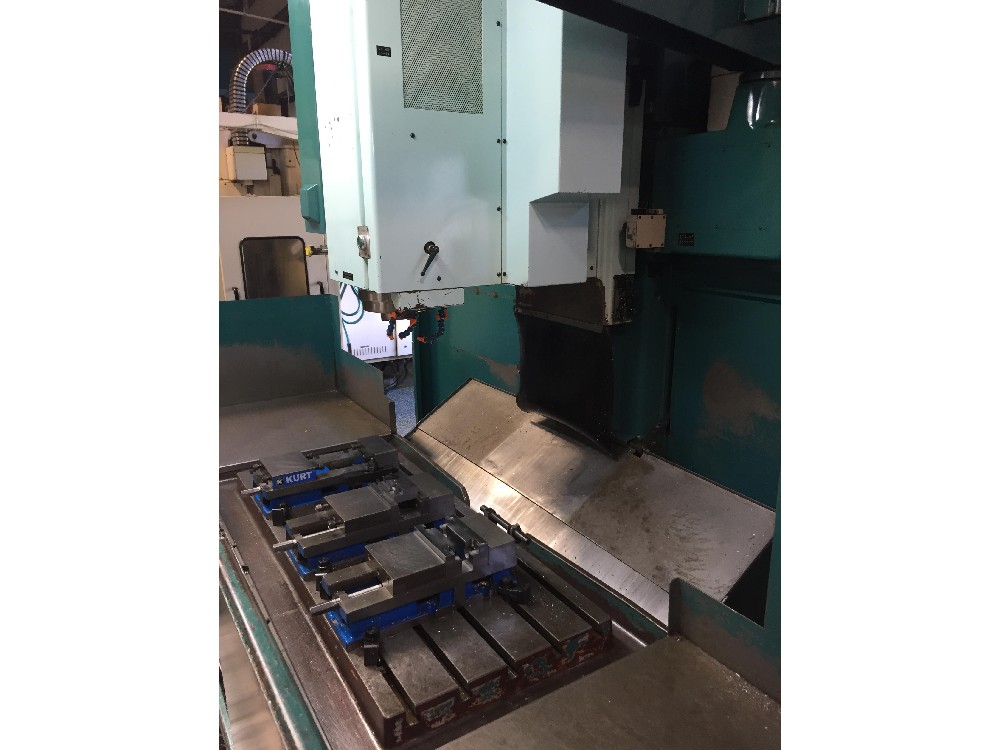

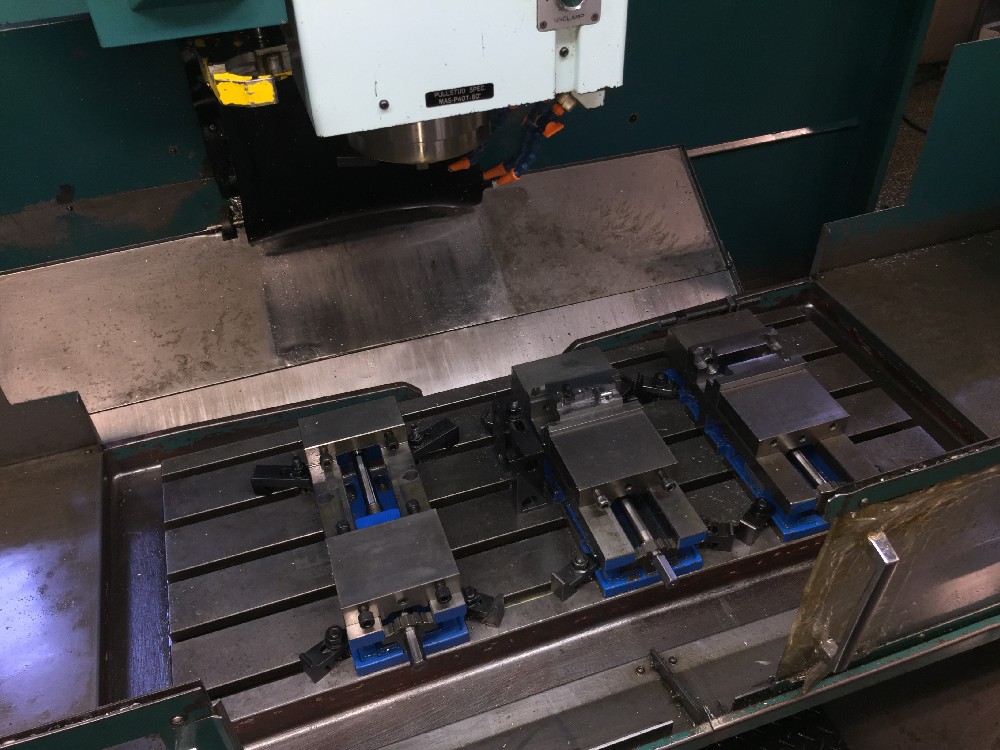

| Table Size: | 55" x 20" |
| X - Axis Travel: | 41" |
| Y - Axis Travel: | 20" |
| Z - Axis Travel: | 22" |
| Distance From Spindle to Top of Table: | 6" - 28" |
| Distance From Table Center to Column Ways: | 12" - 32" |
| Distance From Spindle Center to Column Ways: | 22" |

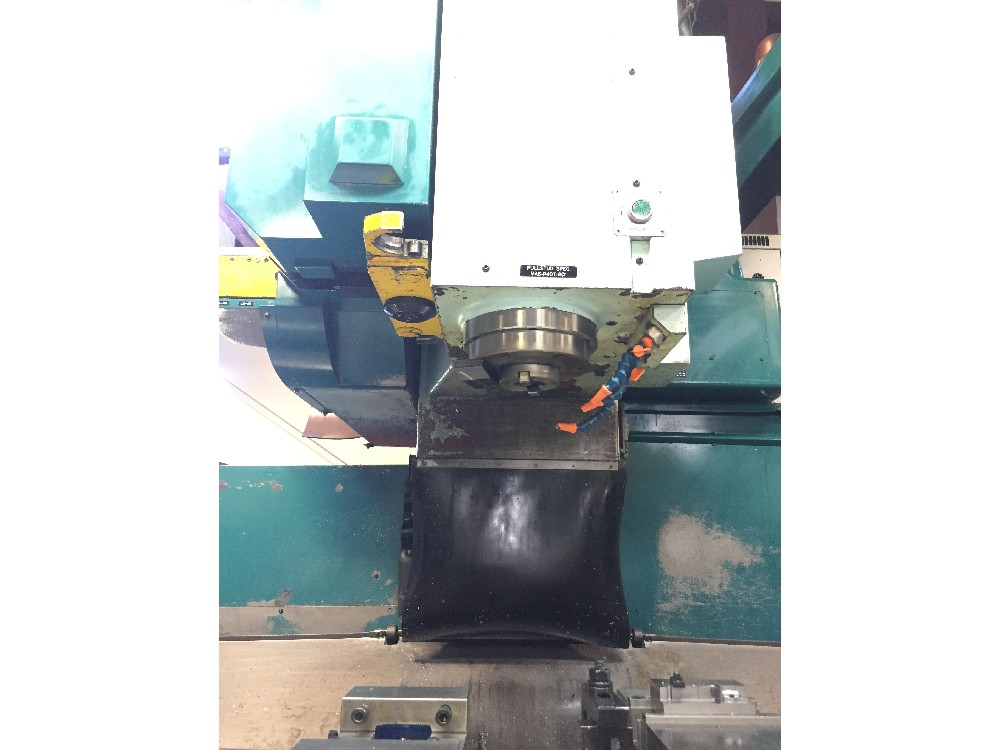

| Spindle Nose Taper: | BT-40 |

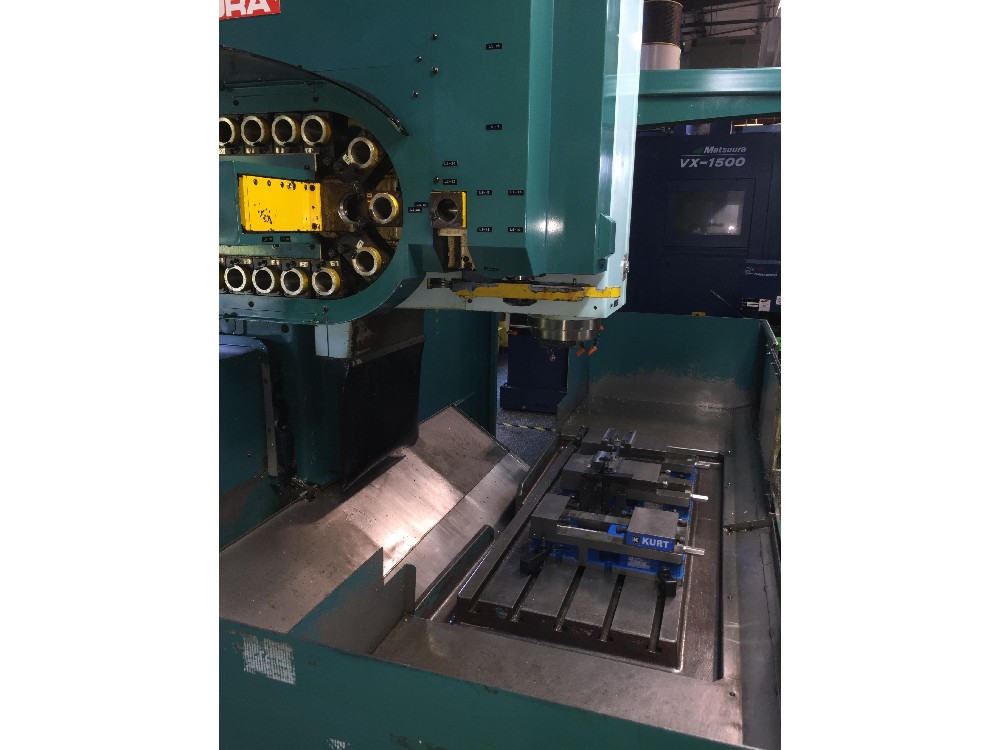

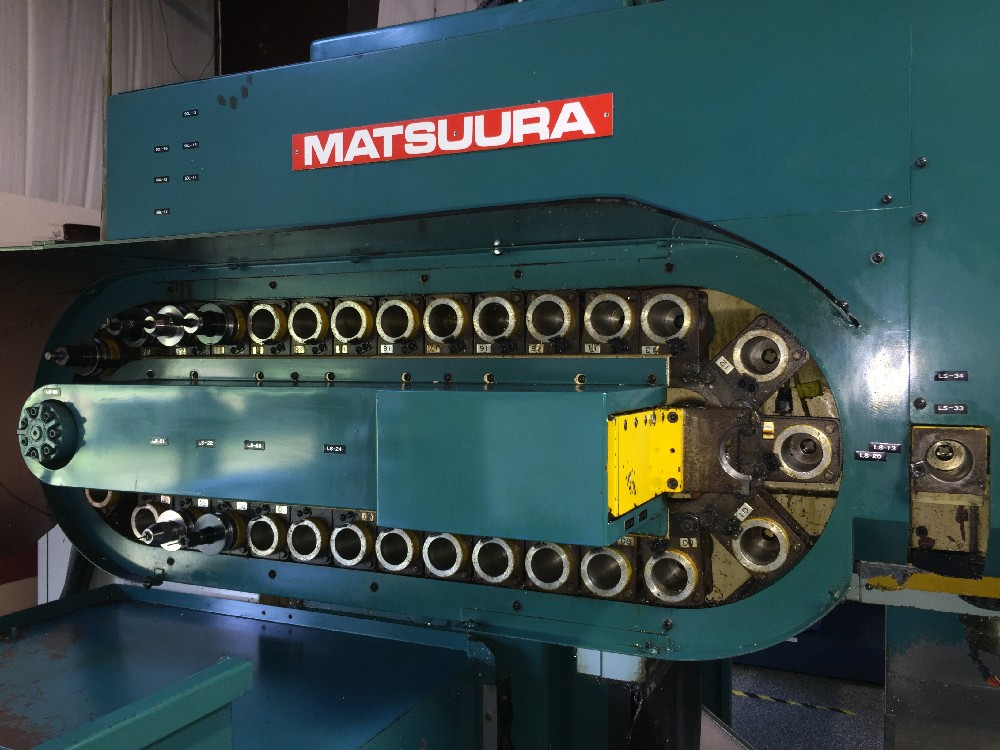

| Number of Positions in Tool Changer: | 30 |
| Spindle Speeds: | 0 - 6000 RPM |
| Rapid Feed Rate, X & Y Axes: | 472 IPM |
| Rapid Feed Rate, Z - Axis: | 394 IPM |
| Cutting Feed Rate, All Axes: | .1 - 118 IPM |
| Overall Machine Dimensions, Approx.: | 120" x 120" x 110" High |
| Machine Weight, Approx.: | 16,500 Lbs. |
