| Specification | Description |
|---|---|

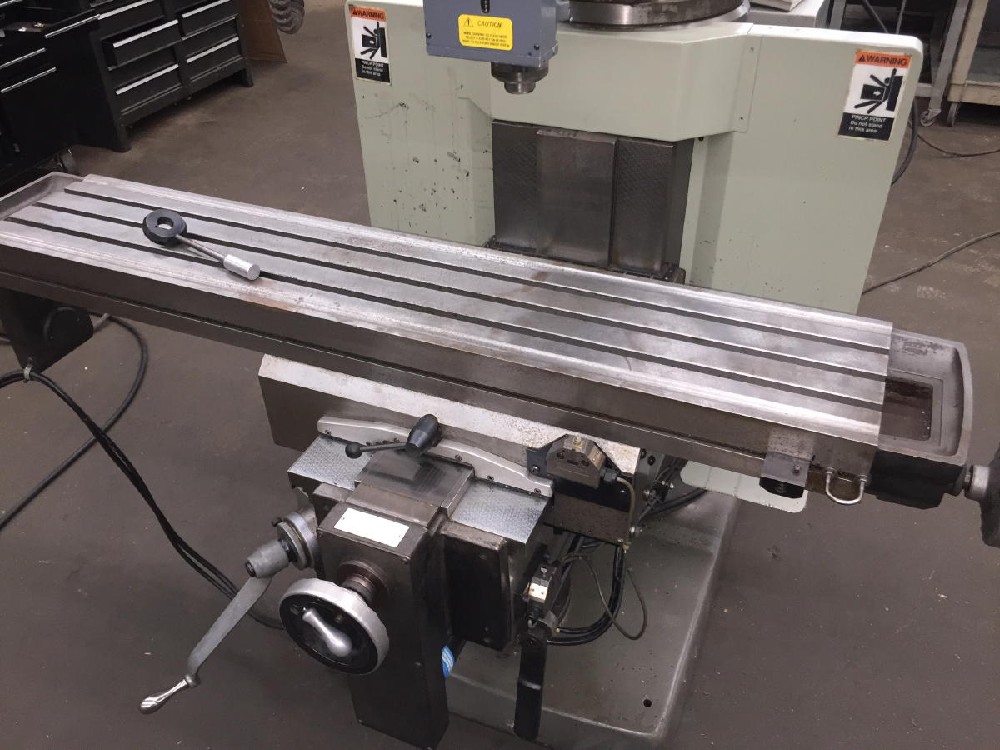

| Table Size: | 11" x 58" |
| X-Axis Table Travel: | 32" |
| Y-Axis Table Travel: | 14.5" |
| Z-Axis (Spindle Quill) Travel: | 5" |
| Distance From Spindle Nose to Table Top: | 4.75" - 16.75" |
| Distance From Floor to Top of Table: | 35" - 47" |
| Spindle Speeds, Variable: | 60 - 4200 RPM |
| Spindle Nose Taper: | R8 |
| X & Y-Axis Feed Rates: | 0.1 - 100 IPM |
| Table Load Capacity: | 600 Lbs. |
| Distance Spindle to Column: | 6" - 23" |
| R8 Collet Capacity: | 3/4" |
| Overall Dimensions: | 84" x 70" x 85" High |
| Machine Weight, Approx.: | 4700 Lbs. |
