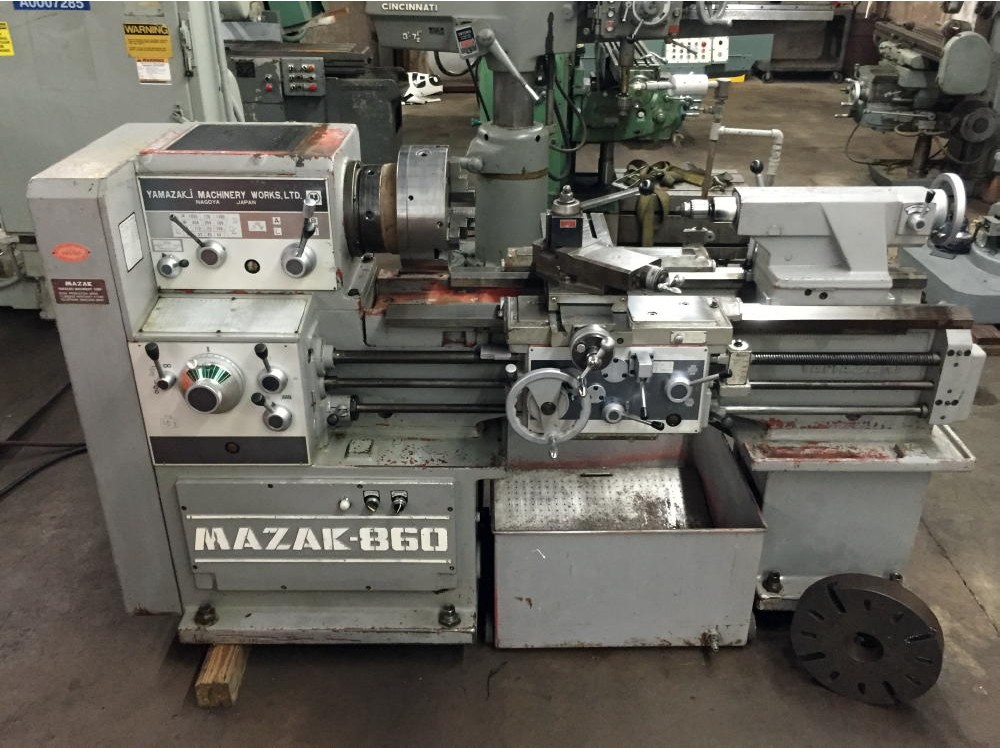

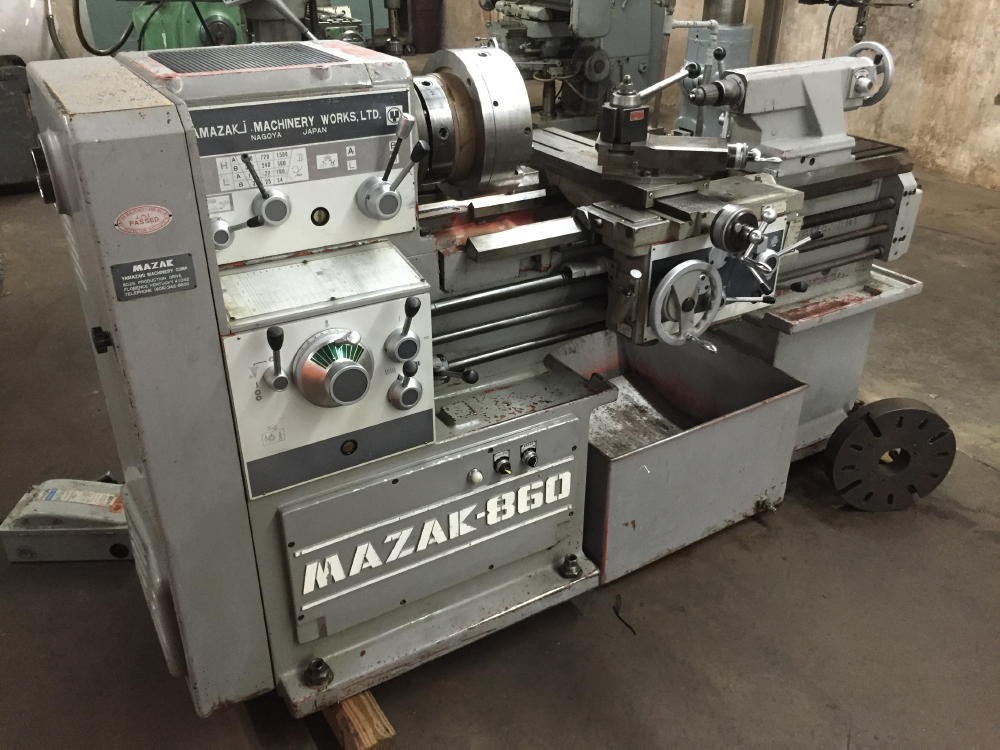

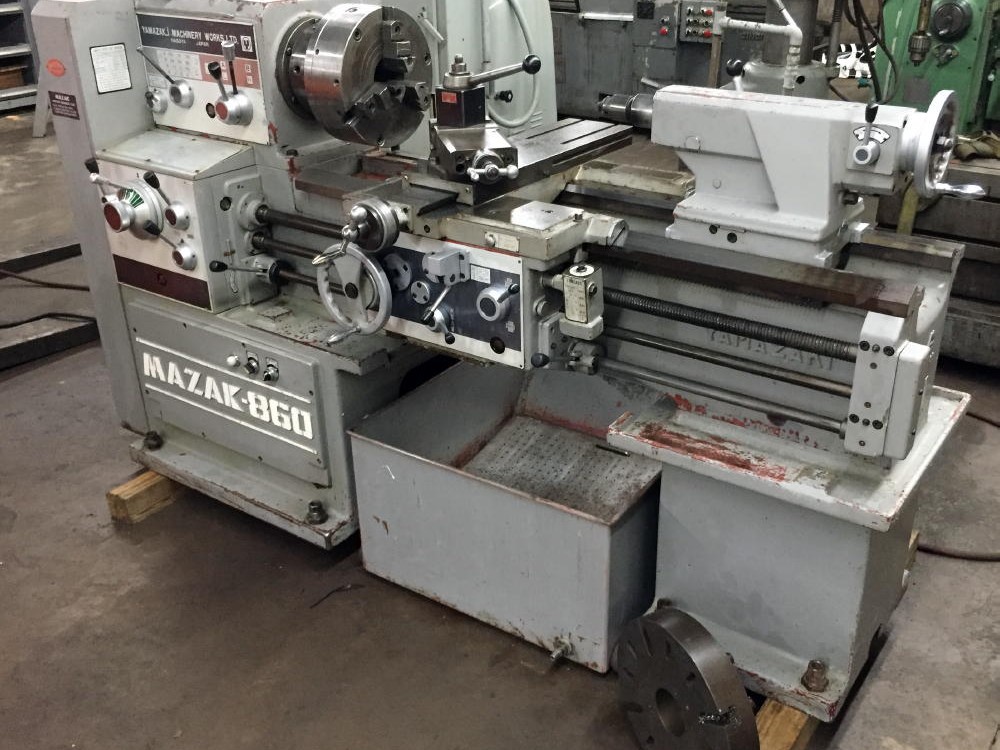

Mazak Tool Room Gap Bed Engine Lathe, 18"/25" x 36"
Stock Number: 061-314
Model: No. Mazak-860, 18"/25" x 40"
Serial No. 32395 Age: 1976
Click to view larger photo
| Specification | Description |
|---|
| Swing Over Bed Ways: | 18" |
| Swing In Gap: | 25-1/8" |
| Swing Over Cross Slide: | 10-1/8" |
| Maximum Distance Between Centers: | 36" |
| Length of Gap: | 11-1/4" |
| Spindle Speeds (12): | 25 - 1500 RPM |
| Spindle Nose Mount: | D1-8 Camlock |
| Hole Through Spindle: | 3-1/8" |
| Threading Range, Inch: | 4 - 56 TPI |
| Threading Range, Metric: | 0.5 - 7 mm/P |
| Longitudinal Feed Rates: | 0.0023" - 0.035"/Rev. |
| Cross Travel Feed Rates: | 0.0011" - 0.017"/Rev. |
| Tailstock Taper: | #4 MT |
| Tailstock Quill Travel: | 6-5/16" |
| Overall Machine Dimensions: | 92" x 44" x 54" High |
| Machine Weight, Approx.: | 4500 Lbs. |

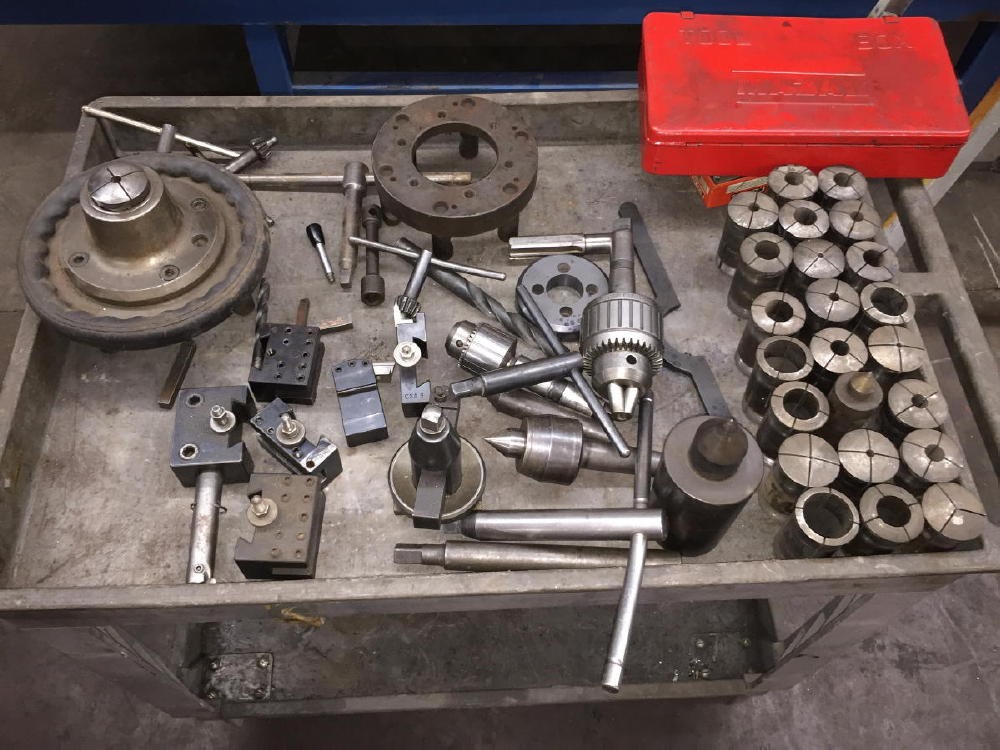

Equipped With:
12" 3-Jaw Buck Forkardt Chuck with Top Jaws
Hardinge #3-D8 Speed Collet Chuck

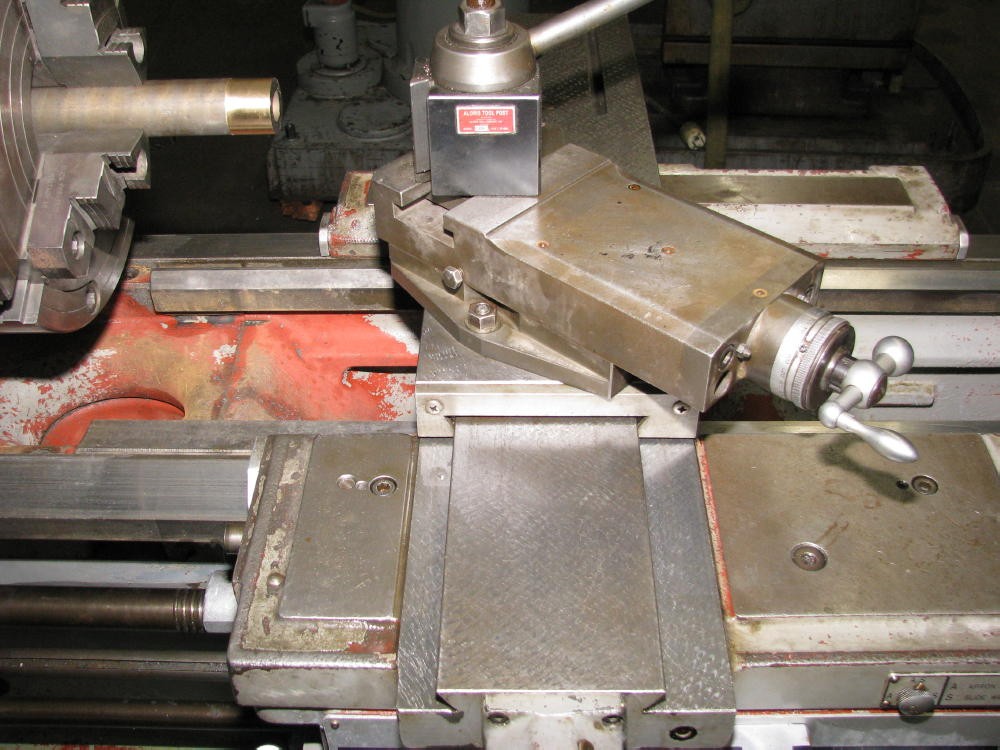

Aloris CXA Quick Change Tool Holder
(7) Aloris Quick Change Inserts
(23) Hardinge Speed Collets

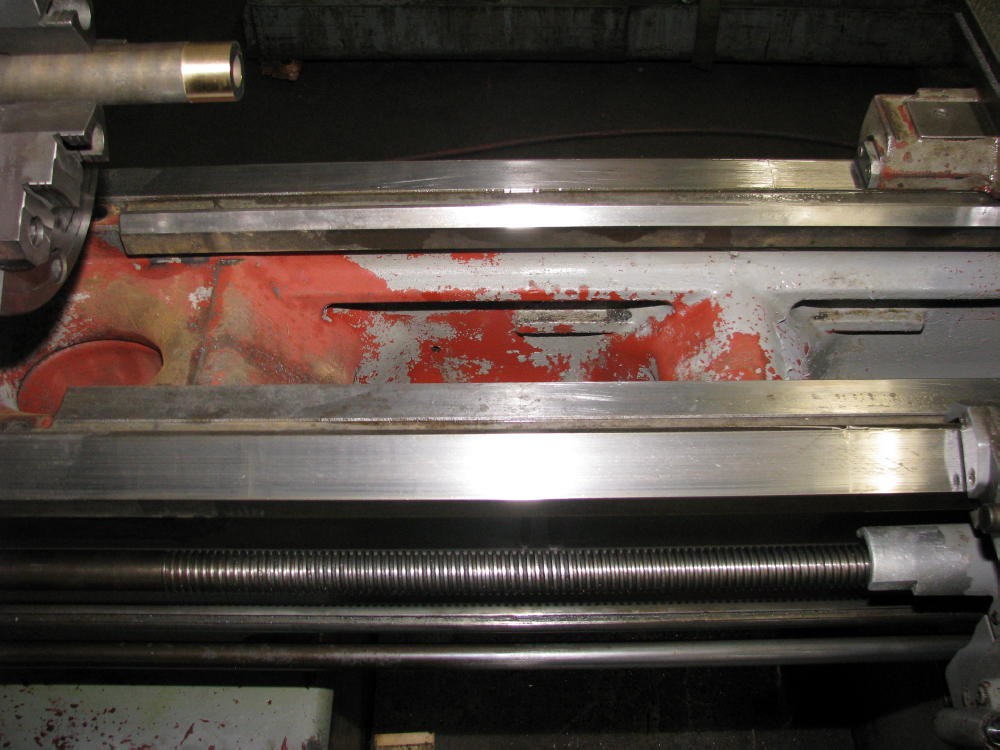

Hardened & Ground Bed Ways
Mazak Toolbox with Wrenches
Rocker-Style Tool Post Holder
2-Speed Tailstock Feed Rates
(3) Drill Chucks to 1" Capacity
Adjustable Spindle Brake
Operator's & Parts Manual
Headstock Center
Live Tailstock Center
14" D-8 Faceplate
D-8 Mounting Plate
Tool Storage Cabinet
Chuck Wrenches
Threading Dial
Coolant
7.5 HP (5,5 Kw) Spindle Motor 230/460/3/60
