| Specification | Description |
|---|---|
| Number of Controlled Axis: | 2 |
| Swing Over Bed: | 20.47" |
| Swing Over Carriage: | 17.72" |
| Swing Over Cross Slide: | 11.81" |
| Maximum Turning Diameter: | 12.20" |
| Maximum Turning Length: | 19.68" |
| Spindle Speeds: | 75 - 3000 RPM |
| Spindle Diameter: | 4.72" |
| Spindle Thru Hole Diameter: | 3.15" |
| Spindle Nose Mount: | JIS A2-8 |
| X - Axis Travel: | 6.1" + 2.56" |
| X - Axis Feed Rate, Inches Per Revolution: | .00004 to 39.37 |
| X - Axis Rapid Feed Rate: | 590.55 IPM |
| Z - Axis Travel: | 20.47" |
| Z - Axis Feed Rate, Inches Per Revolution: | .00004 to 39.37 |
| Z - Axis Rapid Traverse Rate: | 787.40 IPM |

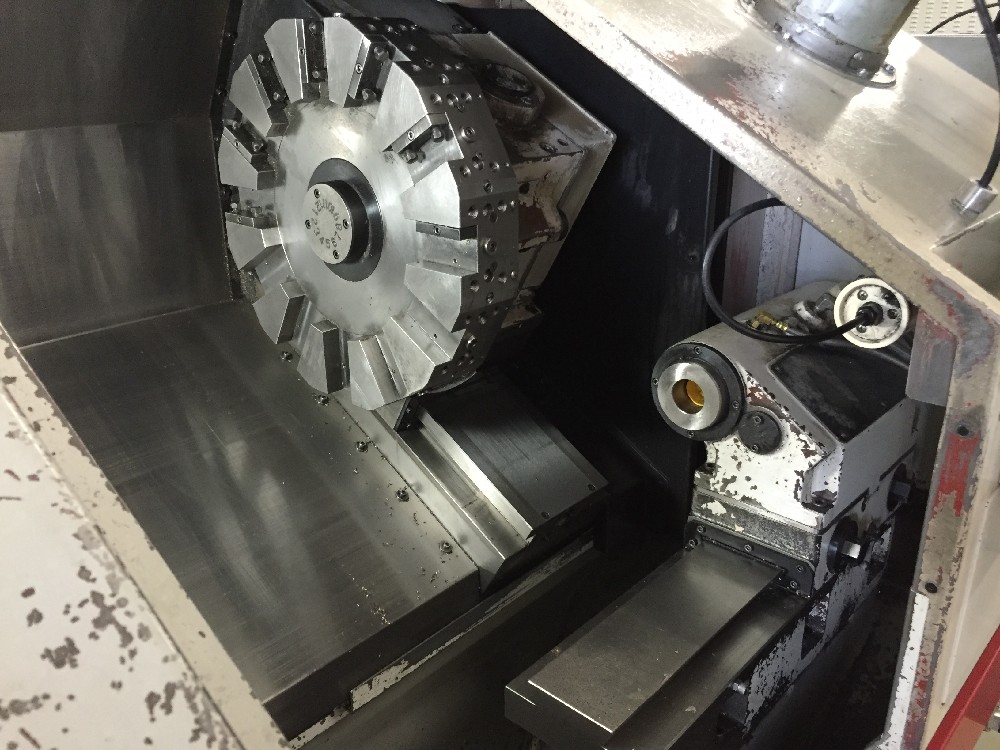

| Turret Type: | V |
| Turret Positions: | 12 |
| Tailstock Spindle Taper Hole: | #5 MT |
| Tailstock Spindle Travel: | 3.94" |
| Recommended Floor Space: | 90" x 78" |
| Machine Weight, Approx.: | 8377 Lbs. |
